10 Essential Features to Look for in a Concrete Batching Plant

Last Updated on March 2, 2023 by Admin

With so many options available in the market, choosing the one that suits your needs best can be overwhelming. But fear not; we’ve got you covered! In this post, we’ll discuss ten essential features that you should look for when investing in a concrete batching plant.

Advertisements

Concrete batching plants are critical for the construction industry, producing the necessary concrete for infrastructure projects. Investing in the right equipment is essential for project success. The following article will discuss ten essential features to look for in a concrete batching plant to ensure efficient and high-quality production.

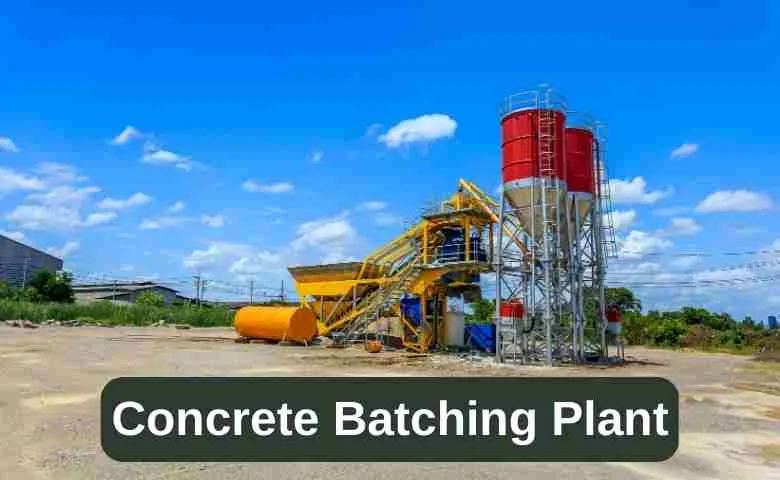

What is a Concrete Batching Plant?

A concrete batching plant, also known as a concrete mixing plant, is a facility that combines different ingredients, including cement, water, aggregates, and additives, to produce concrete.

Advertisements

The plant can be stationary or mobile and is used extensively in the construction industry to produce concrete for various applications, from small residential projects to large-scale infrastructure projects.

Working of Plant

The concrete batching plant combines the various ingredients in specific proportions per the mix design. The aggregates, such as sand and gravel, are first stored in separate bins or compartments. The cement and other additives are stored in separate silos.

When the mixing process begins, the aggregates are conveyed to a weighing system, precisely measured, and then discharged into the mixing unit.

The cement and other additives are also measured and discharged into the mixing unit, which is blended with the aggregates. Depending on the plant’s design, the mixing process can be done manually or through automated systems.

Once the mixing is complete, the concrete is discharged into trucks or ready-mix transport vehicles for transportation to the construction site.

The concrete is then poured into the desired form and allowed to cure, resulting in a strong and durable material used in various construction projects.

Advertisements

Overall, a concrete batching plant is essential equipment for the construction industry, producing high-quality concrete in large quantities for various construction projects.

Related Posts:

Types of concrete batching plant

Several types of concrete batching plants are available, each designed to meet specific production needs and requirements. The following are some of the most common types of concrete batching plants:

Stationary Concrete Batching Plant:

A stationary concrete batching plant is designed to remain in one location for an extended period.

Image: Stationary Concrete Plant

These plants are commonly used for large-scale projects and have a higher production capacity than mobile plants.

Mobile Concrete Batching Plant:

A mobile concrete batching plant is designed to be transported to different locations easily.

Advertisements

Image: Mobile Concrete Batching Plant

These plants are ideal for small-scale projects or use in remote locations where access to concrete may be limited.

Dry Mix Concrete Batching Plant:

In a dry mix concrete batching plant, all the ingredients are weighed and loaded into the truck mixer separately.

Image: Dry Mix Concrete Batching Plant

Mixing ingredients occurs during transportation to the construction site, where water is added to produce fresh concrete.

Wet Mix Concrete Batching Plant:

In a wet mix concrete batching plant, all the ingredients are mixed with water before being loaded into the truck mixer. This type of plant produces a higher quality and more consistent concrete mix.

Central Mix Concrete Batching Plant:

A central mix concrete batching plant combines all the ingredients, including water, into a central mixer. The mixing process results in a consistent mix, which is then loaded into the truck mixer for transportation to the construction site.

Self-Loading Concrete Batching Plant:

A self-loading concrete batching plant is a mobile plant with a self-loading concrete mixer. This type of plant is ideal for small-scale projects and locations where access to concrete is limited.

Overall, the choice of a concrete batching plant will depend on the project’s specific needs, such as the required production capacity, mobility, and location.

Concrete Batching Plant capacity

The concrete batching plant capacity can vary greatly, depending on the plant type and the project’s specific needs. The capacity of a concrete batching plant is usually measured in cubic meters per hour (m³/h), which refers to the volume of concrete that can be produced in an hour.

  • Small-scale concrete batching plants typically have a capacity of 20 to 50 m³/h. These plants are commonly used for small residential projects like home renovations or landscaping.
  • Medium-scale concrete batching plants have a capacity of 50 to 100 m³/h. These plants are commonly used for medium-sized projects, such as construction or road infrastructure.
  • Large-scale concrete batching plants can have a capacity of up to 300 m³/h or more. These plants are commonly used for large infrastructure projects, such as airport runways, dams, or bridges.

It’s important to note that the capacity of a concrete batching plant is not the only factor that determines its efficiency. Other factors, such as the type of mixer, the ingredients’ quality, and the plant’s design, can also play a crucial role in determining the production capacity and quality of the concrete produced.

Concrete Batching Plant Process

The concrete batching plant process involves several steps to produce high-quality concrete. The following is a general overview of the typical process involved in a concrete batching plant:

Advertisements
  • Aggregate Batching: The first step in the process is to weigh and load the aggregates, such as sand, gravel, and crushed stone, into the separate bins or compartments of the batching plant. The aggregates are usually stored in a designated area adjacent to the plant.
  • Cement and Additive Weighing: Once the aggregates have been loaded, the cement and other additives, such as fly ash, water, and admixtures, are weighed and loaded into separate storage silos. The exact proportions of each ingredient are determined based on the desired mix design.
  • Mixing: The next step is to mix the aggregates, cement, and other additives in the batching plant’s mixing unit. Depending on the plant’s design, the mixing process can be done manually or through automated systems. The mixing process should be thorough to ensure the concrete mix is consistent and lumps-free.
  • Discharging: Once the mixing process is complete, the concrete mix is discharged into trucks or ready-mix concrete transport vehicles for transportation to the construction site. Depending on the plant’s design, the discharge can be done manually or through automated systems.
  • Transporting: The concrete is transported to the construction site, where it is poured into the desired form and allowed to cure. The curing time varies depending on the type of concrete and the weather conditions.

Overall, the concrete batching plant process is designed to produce high-quality concrete efficiently and consistently. The precise weighing and mixing of the ingredients are essential to produce a concrete mix that meets the required specifications and standards for the construction project.

Top 10 Must-Have Features for a Reliable Batching Plant

With the wide variety of batching plant options available in the market, it can be overwhelming to determine which one best fits your project needs. To help you make an informed decision, we’ve compiled a list of the top 10 must-have features you should look for in a reliable batching plant.

These features are essential to ensure optimal performance, efficiency, and quality production, saving you time and money in the long run. When considering a batching plant for your next construction project, read on to discover the features that should be at the top of your list.

1. Accuracy

Accurate measurement of materials is critical for producing high-quality concrete. Look for a batching plant with precise weighing systems that accurately measure cement, water, and aggregates.

2. Customizable

A concrete batching plant should be customizable to meet the needs of different projects. Look for a plant that can be adjusted to accommodate different mix designs and production requirements.

3. Durability

Concrete batching plants must withstand constant use, exposure to the elements, and heavy loads. Choose a plant made from high-quality materials that can withstand the demands of the construction industry.

4. Mobility

Depending on the nature of the project, the plant may need to be moved to different sites. Look for a mobile concrete batching plant that can be easily transported and set up in different locations.

5. Automation

Automation can improve efficiency and reduce labor costs. Choose a batching plant with an automated system that can control the entire production process, from batching to mixing and discharge.

6. Environmental Considerations

Environmental sustainability is becoming increasingly important in the construction industry. Look for a concrete batching plant with features such as dust collectors and wastewater treatment systems to reduce environmental impact.

7. Easy Maintenance

Maintenance is essential to ensure the plant operates efficiently and has a long lifespan. Choose a plant with easy access to critical components for regular maintenance and repairs.

8. Safety

Safety is paramount in any construction project. Look for a batching plant with safety features, such as guards around moving parts, emergency stop buttons, and alarms.

9. User-Friendly Interface

A user-friendly interface can make it easier for operators to control and monitor the production process. Look for a batching plant with an intuitive interface that allows operators to adjust settings and track production.

10. Technical Support

Finally, technical support is essential for troubleshooting any issues during operation. Choose a manufacturer that offers technical support, training, and spare parts for the batching plant.

Conclusion

Investing in the right concrete batching plant is critical for the success of construction projects. By looking for the essential features discussed above, construction companies can ensure a high-quality and efficient batching plant that meets their production needs.

FAQs

What is a concrete batch plant?

A concrete batch plant is a manufacturing facility where concrete is produced in batches by combining various ingredients such as cement, water, aggregates, and additives.

What is the purpose of concrete batching?

The purpose of concrete batching is to produce high-quality concrete in large quantities by accurately measuring and mixing the ingredients according to specific recipes or designs.

What are the two types of concrete batching plant?

The two types of concrete batching plants are stationary and mobile. Stationary plants are designed for long-term use in a fixed location, while mobile plants are designed to be easily transported to different job sites.

What is the process of batching plant?

The process of a batching plant involves weighing and mixing various ingredients to produce concrete. The ingredients are fed into the plant’s hopper, which then dispenses them into the mixing chamber. The mixer then rotates and mixes the ingredients before the finished concrete is discharged into a truck or other container for transport.
